Publison DHM 89 B2 Infernal Machine Combined Owners Manual & Service Manual. MN

SKU: PUBLISONDMH MANUAL
Stock: 9
Price:
$40.00

Qty: - +
   - OR -

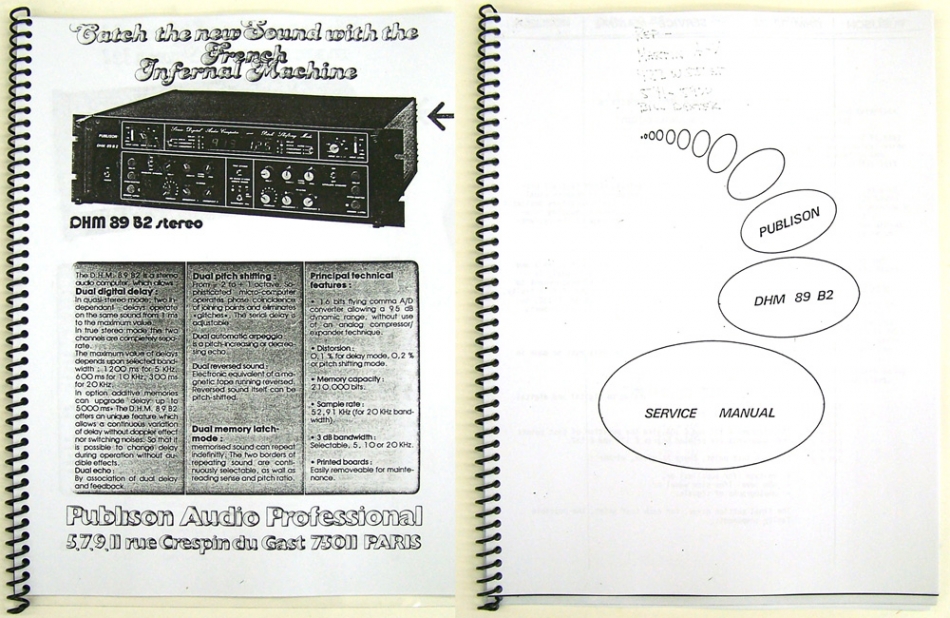

For frustrated Publison owners with no documentation about your Infernal Machine, here’s a combined owner’s manual / service manual that may provide some relief.  The owner’s manual portion contains 18 pages with a block diagram, info about pitch shiting, delay, VCO, etc. along with specs.  The 16 page service manual portion includes general repair info, oscilloscope photos, power supply info, and test point data.  (No schematics are included.)  The manual is bound with plastic covers. The manual also includes a color illustration that identifies nearly all of the IC's inside the unit.

(All pages are combined in one manual.)
