Eventide PS-101 Phaser Instruction Manual w/Large Schematic. MU

SKU: ps101.manual
Stock: 3
Price:
$35.00

Qty: - +
   - OR -

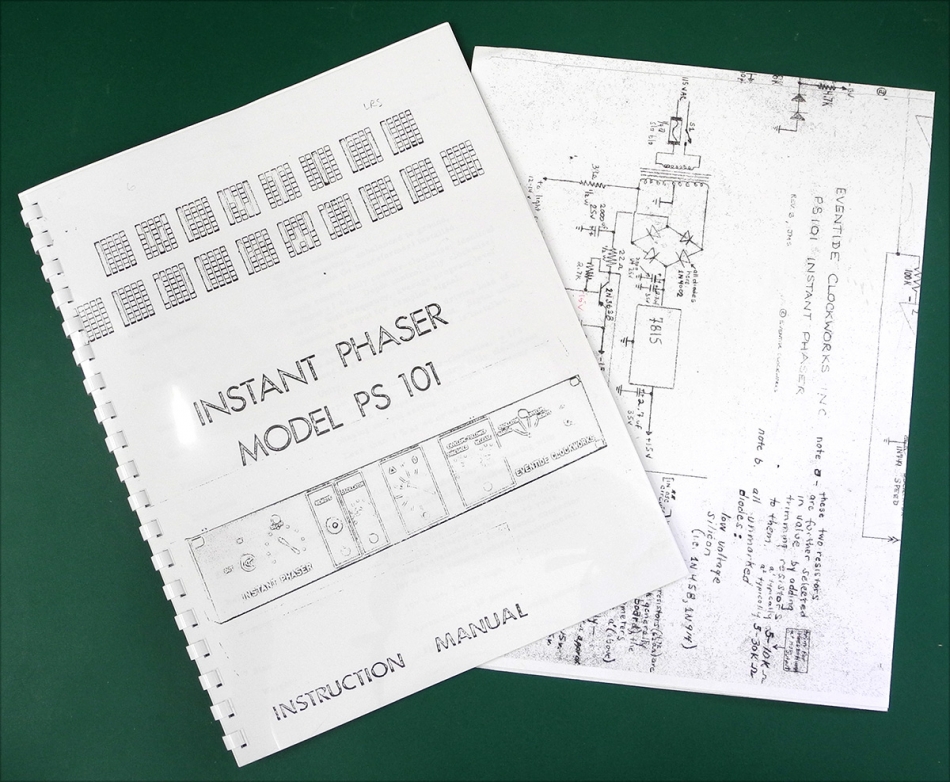

Eventide PS-101 Phaser Instruction Manual w/Large Schematic. This is a relatively brief owner's manual but it includes the hard to find schematic, which Eventide only generated as a large blueprint. Sections include Specifications, General Description, Control Description, Interface Connections, Theory Of Operation, Block Diagram, Use Of Effects, and Schematic. The schematic is a large 22" x 17" sheet. A little bit of the text on the schematic is small and slightly hard to read, which was true of the original, but 95% of it is quite readable and understandable. These are copies of the original manual, in a comb binding.
