Eventide 130020 1:2 PC Mount Output Transformer for FL201 Flanger, 6db Gain. EA

SKU: eventide.130020
Stock: 23
Price:
$35.00

Qty: - +
   - OR -

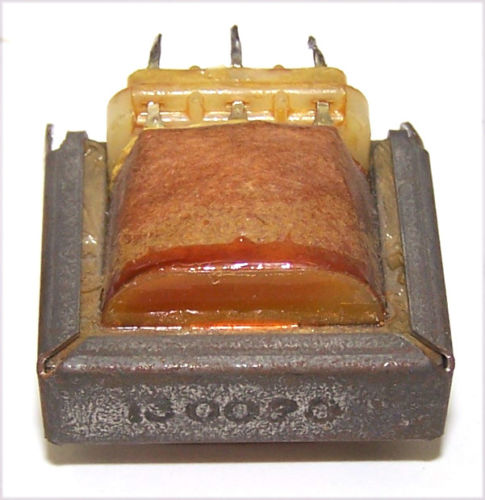

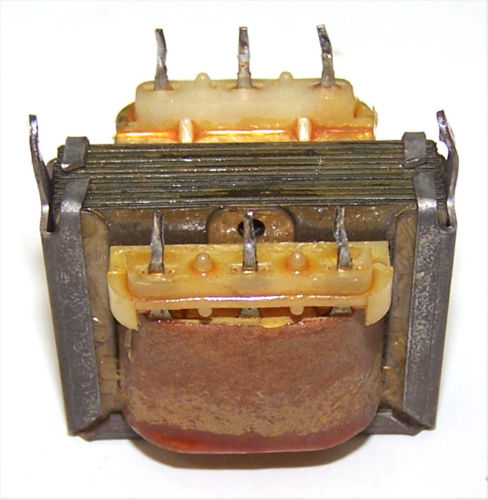

Used Eventide 130020 1:2 PC Mount Output Transformer for the FL-201 Flanger, 6db Gain. General purpose output transformer with gain, as used on the Eventide Fl201 and various dbx models. The primary and secondary each have single windings, with no center tap. Please note that the pin marked 1 indicates the secondary winding. 1.75 wide, 1.125 deep, 1.25 high. Guaranteed to work properly.

Most Eventide FL-201 Flangers were shipped without these optional transformers. They can be added to the FL-201, but the job involves cutting a few foils and adding some jumper wires. Upon request we'll include a photo that shows the mods than need to be done on the bottom of the motherboard, and a schematic of the FL-201. However please note that while this is not a big job we cannot provide step by step instructions, and the work should be done by a qualified technician.
