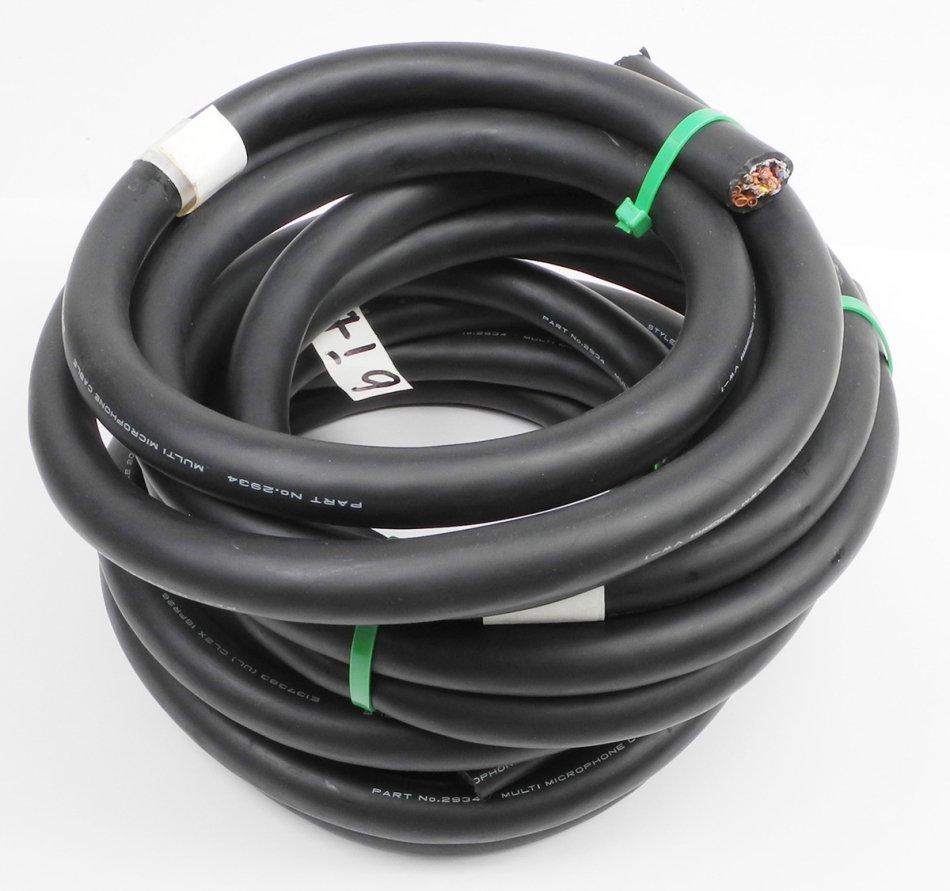

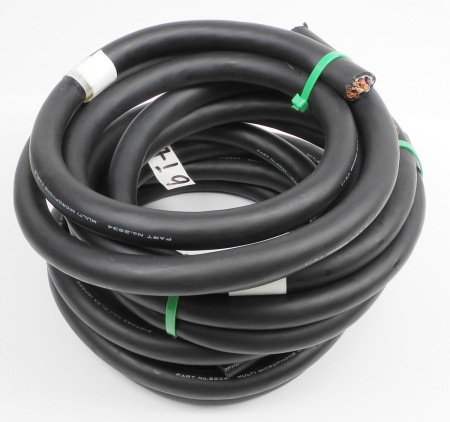

4 Short Lengths Mogami 2934 16-Channel Mic Cable', 3 5 Foot And 1 4 Foot 9".

4 Short Lengths Mogami 2934 16-Channel Mic Cable', Three 5 Foot And One 4 Foot 9". This cable is probably used, but it might be unused. Good condition.

New Mogami 2934 cable generally sells for about $7.00 per foot.

Top quality easy ID pro audio analog audio cable for installation, rack wiring, adapters, snakes, etc. Soft pliable jacket, very flexible.

ELECTRICAL & MECHANICAL CHARACTERISTICS

DC Resistance at 20°C - Inner Pair Conductor: 0.13Ω/m(0.040Ω/Ft)

DC Resistance at 20°C - Shield: 0.031Ω/m(0.0095Ω/Ft)

Capacitance at 1kHz, 20°C (Partial Capacitance Value) - K0: 130pF/m(40pF/Ft)

Capacitance at 1kHz, 20°C (Partial Capacitance Value) - K1: 12pF/m(3.7pF/Ft)

Inductance: 0.6µH/m(0.18µH/Ft)

Electrostatic Noise (Hum Pick-up)*: 2.5mV Max.

Electromagnetic Noise at 10kHz* (Inductance of the toroidal core: 595µH): 0.1mV Max.

Microphonics* Method - Stepping on cable: 50mV Max. at 50kΩ/ Load

XLPE (Cross Linked Polyethylene) insulation provides superb electrical characteristics and will not melt or shrink back during soldering.

Rugged and flexible construction that is easy to handle, even at temperatures down to -20C (-4F).

Easy cable identification system:

Channel numbers are printed and underlined on each core jacket to ensure correct identification, regardless of which end is stripped. Outer jackets of each pair are colour coded by standard resistor colour code, allowing quick identification of conductor pairs. Inner conductors are also colour coded based on the international standard resistor colour code. Each pair is colour coded by jacket and conductor colour combination.

Each channel has a drain wire and served (spiral) bare copper shield. The drain wire simplify termination and can be crimped by the same size contact as the inner conductor pair.
