Gotham 11001 GAC-4/1 StarQuad 4-conductor microphone cable
SKU: 11001 GAC-4/1
Gotham ""Star-Quad"" cables are the most advanced microphone cables presently available. We have combined anultraflexible PVC-jacket, low capacitive PE insulation, ""double Reussen shielding"" and quad (4-conductor) construction for a truly professional cable at an affordable price.
The ""Star-Quad"" concept is known and recommended where the RF-rejection is the most important factor and where very long cable runs are needed. As we use each 2 conductors for low and high signal, we reduce the signal loss by 50% and due to the offset of the incoming RF-signal by the way the 4 conductors are twisted, the RFrejection is over 130dB (25 kHz). The exclusive double shielding does its part of these features as well.

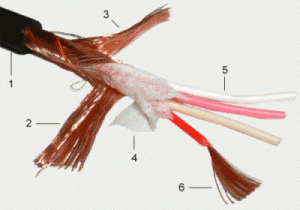

1 Jacket PVC, ø 0.21 in, velvet black (ultrasoft)
2 Shield No. 1 Bare copper wires (38 AWG), 100% coverage
3 Shield No. 2 Bare copper wires (38 AWG), 100% coverage
4 Viscose fiber coat Counter wrapped to the quad twisted conductors
5 Insulation (cond.) PE, ø 0.05 in, white, ivory, pink and red, quad-twisted
6 Conductor Stranded bare copper wires, 96x44 AWG (24 AWG)
Conductor resistance < 24.4 Ohm /1000 ft
Shielding resistance < 6.1 Ohm /1000 ft
Capacitance cond /cond < 16.8 nF /1000 ft
Capacitance cond /shield < 31.4 nF /1000 ft
Noise attenuation 130 dB (see wiring)
Characteristic impedance 180 Ohm
Test voltage cond /cond 500 V eff.
Test voltage cond /shield 2000 V eff.
Operating voltage low voltage
Temperature range (flex) - 5° to +50° C
Temperature range (fix) -30° to +70° C
