Multipair versions of the new digital halogenfree cable GAC-2 CE AES. The non-corrosive jacket material chosen (flame-retarded polyolefine) allows this cable to be used for fixed installations in public buildings and in governmental installations, where halogenfree products are demanded. The 4- and 8pair constructions will be additionally protected with an outside shield using aluminium-foil and braided copper wires.

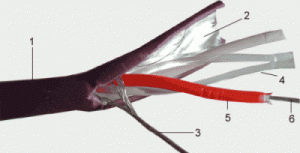

1 Jacket Polyolefine
2 Shield No. 1 Braiding with tinned copper wires (38 AWG)
3 Shield No. 2 Aluminium foil
4 Jacket Polyolefine, ø 0.18 in max., purple
5 Shield No. 3 Aluminiumfoil
6 Shield and drain wire Tinned copper wires, ø 0.006 in
7 Stabilisation cords (2) PE, quad twisted with two conductors
8 Insulation Foam-Skin “PE”, ø 0.06 in, white and red
9 Conductor Stranded tinned copper wires, 7x32 AWG (24 AWG)
Conductor resistance < 24.4 Ohm /1000 ft
Insulation resistance > 3.1 GOhm /1000 ft
Attenuation at 1 MHz < 10.7 dB /1000 ft
Attenuation at 6 MHz < 21.3 dB /1000 ft
Test voltage cond /cond 500 V eff.
Test voltage cond /shield 2000 V eff.
Capacitance cond /cond < 15.2 nF /1000 ft
Capacitance cond /shield < 28.1 nF /1000 ft
Characteristic impedance 110 Ohm ±2%
Temperature range (flex) - 5° to +50° C
Temperature range (fix) -30° to +70° C
