Gotham 12001 GAC-2pair flat Multipair cable with flat construction

Each pair of conductors is protected by our exclusive double Reussen shield. Two layers of copper wires with each 100% coverage secure minimal crosstalk, maximal RF-rejection and excellent flexibility of the whole construction. With this concept of shielding and protection, the cable is the best possible consens of reliability, flexibility and signal protection. Gotham multipair cables come in various combinations from 2pair up to 34pair, per meter, in cut length or standard spools. All multipair cables are numbered each meter for easy length termination.

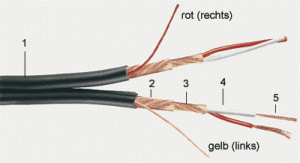

1 Jacket ø 0.16 in, grey (dark)
2 Shield No. 1 Bare copper wires (38 AWG), 100% coverage
3 Shield No. 2 Bare copper wires (38 AWG), 100% coverage
4 Insulation (cond.) PVC, ø 0.04 in, conductors red and white wrapped
5 Conductor Stranded bare copper wires, 25x38 AWG (24 AWG)
6 Fabric strings Side identification red /yellow

Conductor resistance < 24.4 Ohm /1000 ft
Shielding resistance < 6.1 Ohm /1000 ft
Capacitance at 800 Hz, cond /cond < 27.4 nF /1000 ft
Capacitance at 800 Hz, cond /shield< 45.7 nF /1000 ft
Temperature range (flex) - 5° to +50° C
Temperature range (fix) -30° to +70° C
