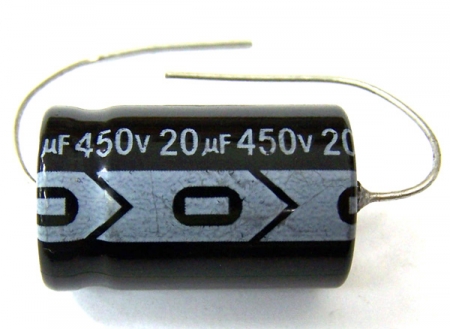

New stock 20UF 450 VDC 105 degree C Axial Electrolytic Capacitors. Standard polarized capacitors with long leads, ideal for recaps of vintage radios, TV's, guitar amps, and audio equipment.
Working Voltage: 450 VDC
Surge voltage: 500 VDC
Capacitance Tolerance: +/- 20%
Operating temperature: -40C to +105C.
Dissipation Factor: <0.24 @ 20C/120Hz
Ripple Current: 310 ma rms
Dimensions: 16mm by 32mm (5/8 by 1 1/4)
Lead type and length: Tinned copper-ply, 40mm (1.5)
Manufacturer & Series: MIEC KT
