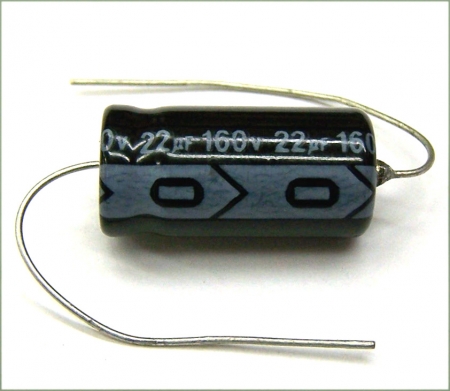

New stock 22 UF 160 VDC 105 degree C Axial Electrolytic Capacitors. Standard polarized capacitors with long leads, ideal for recaps of vintage radios, TV's, guitar amps, and audio equipment.
Working Voltage: 160 VDC
Surge voltage: 200 VDC
Capacitance Tolerance: +/- 20%
Operating temperature: -40C to +105C.
Dissipation Factor: <0.20 @ 20C/120Hz
Ripple Current: 99 ma rms
Dimensions: 10mm by 20mm (3/8 by 1) ZZZ
Lead type and length: Tinned copper-ply, 40mm (1.5)
Manufacturer & Series: MIEC KT
