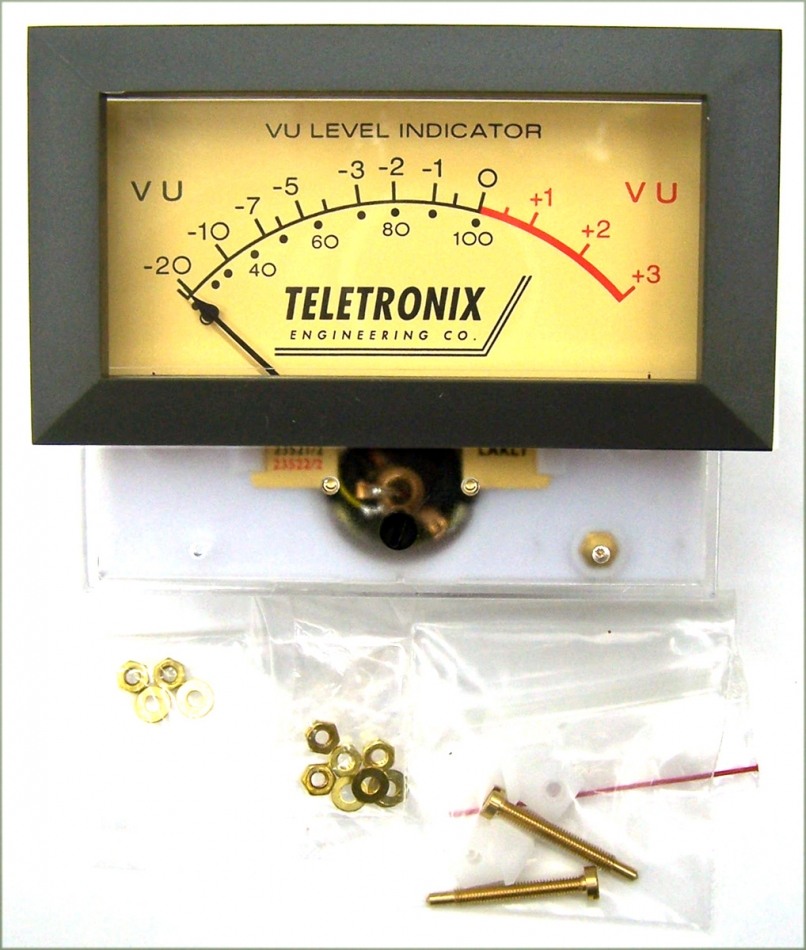

Please note that this is NOT an exact replacement for the original Beede VU meter. The appearance is nearly identical, but the outside dimensions are slightly different. If you are replacing a faulty Beede meter in an original unit, you'll need to file or mill out the sides of the cut out.
VU meter Dimensions (without bezel):
Width (upper section): 3.69"" (94mm)
Width (lower section): 3.59"" (91mm)
Height: 2.85: (73mm)
Thickness (upper section): .45"" (11.5mm)
Thickness (lower section): .368"" (9.5mm)
Diameter of round movement housing: 1"" (21mm)
Depth of round movement housing, including terminals: 1.47"" (33.5mm)
Cut out required for meter assembly with bezel:
Width 3.88"" (98.5mm)
Height 1.815: (46mm)"
