Quantec QRS Room Simulator, Complete Set of 9 Blueprint Size Schematics

SKU: 3756
Stock: 4
Price:
$75.00

Qty: - +
   - OR -

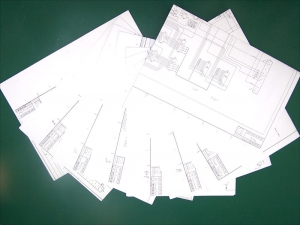

Complete Set of 9 Blueprint Size Schematics for the Quantec QRS Room Simulator. (The original 2 RU version).

Set includes schematics for Delay (DY) PCB, Control Processor (COP) PCB, Memory (MY) PCB, SIgnal Processor (SIP) PCB, Discorrelator (DIS) PCB, AD Converter (AD) PCB, DA Converter (DA) PCB, Operating Panel (TF + TE), and Power Supply. These are copies of original factory prints and are reasonably legible. (On the original prints many of the small numerals and symbols are a little hard to read so of course these copies are the same, but to the technician this will not be a big issue.)
