Sony MXP-3000 LMP T-9412-053-1 Module Mic Preamp w/Retrofit SSM2019 PCB, Good For DIY. XA

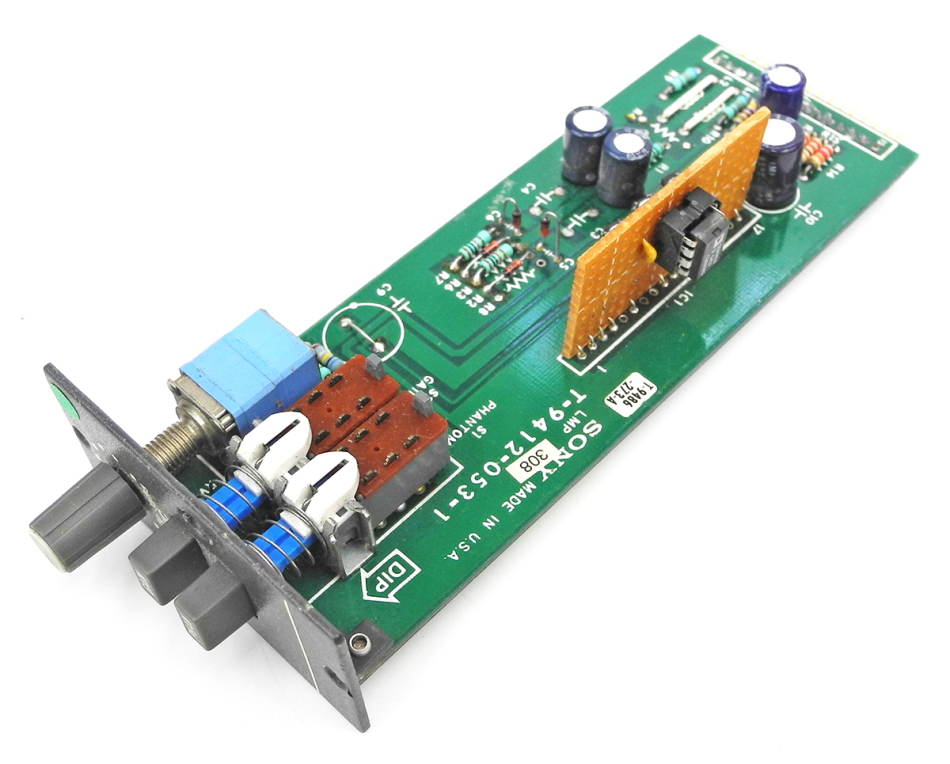

Sony MXP-3000 LMP T-9412-053-1 Module Mic Preamp w/Retrofit SSM2019 PCB, Good For DIY.. It is used but fully tested and in clean condition. This is a nice Mic Preamp that can be used as a spare Mic Pre for the MXP-3000, or it can be wired or racked as a DIY preamp project. A previous owner replaced the T-9414-283-1 hybrid module with a small PCB fitted with a SSM2019 opamp, as can be seen in the photo. Gain and frequency response are the same as the original circuit; the distortion spec may be better. This item is fully guaranteed.

The module includes a 25 db pad, a gain trim with 20 or 35 dB range (depending on the position of the pad switch), and a phantom power on/off switch. There is a 15 pin male connector on the rear that has all the input, output, and power supply connections. Power supply requirements are +/- 18 volts and +48 volts (optional). A copy of the original schematic (which shows the hybrid type opamp) is included with the module. Dimensions: 6 deep, 2 3/8 high, 1 3/16 wide.
