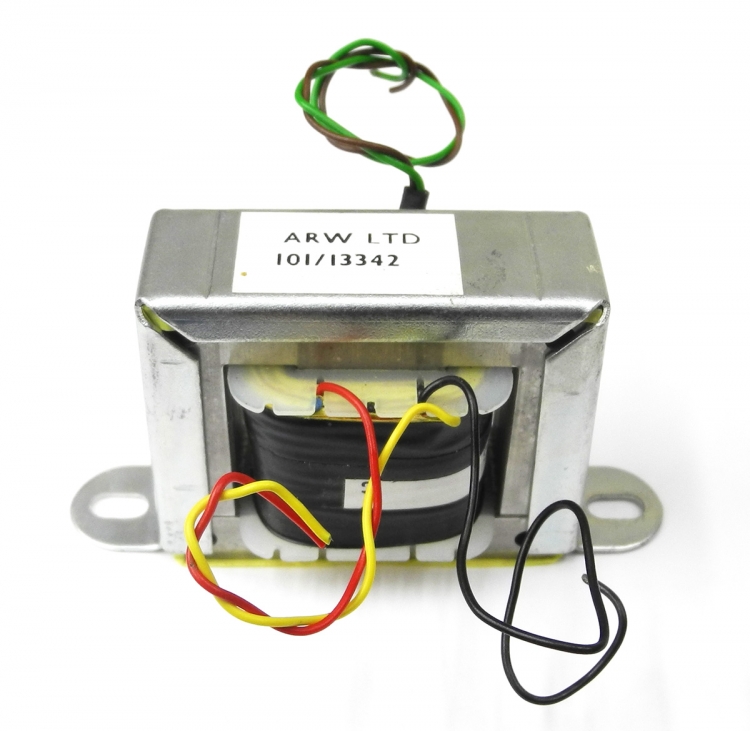

Vintage ARW 101/13342 Quality 1:2 6db Gain Dolby Output Transformer DIY Etc. TR

SKU: ARW.101.13342
Stock: 5

Qty: - +
   - OR -

Vintage ARW 101/13342 Top Quality 1:2 Output Transformer. These are excellent quality output transformers that were used on the Dolby 361, 362, and other models. They have super solid low end bass, and very smooth overall response. They are used and tested, in great condition. Excellent output transformer for DIY applications, where 6db gain is needed or is beneficial. Manufactured in the U.K.

Maximum output level at 60 Hz. is +23
Frequency response is 35 Hz to 65 kHz +/- 1/2 db
Primary/Secondary ratio is 1:2 (6 db gain)
No termination resistor is needed on the secondary.)
Output impedance is 200 ohms
Outside dimensions are 2 3/8 (60mm) x 1 1/2 (35mm). The hole centers in the bottom mounting ears are 3 1/16 (77mm) apart.

Transformers are in excellent condition, leads are cut from previous use but arr approx. 3 (70mm) long. A wiring diagram will included.
