NOS Isostat Assembly w/ TWO 2-pole Alternate Action Latching switches for Neve, Trident, Etc. (Some Short Pins). IC

NOS Isostat Assembly w/ TWO 2-pole Alternate Action Latching switches for Neve, Trident, Etc. (Some Short Pins). In Neve modules these switches were often used for Phase Reverse and EQ In/Out functions.

These are replacement switch assemblies with two Isostat switches in a frame. The frame has two mounting holes at the front, with centers spaced 33mm apart, tapped for standard 3mm machine screws. The switches are independent of each other, with latching (ie alternate action / maintained) plungers.

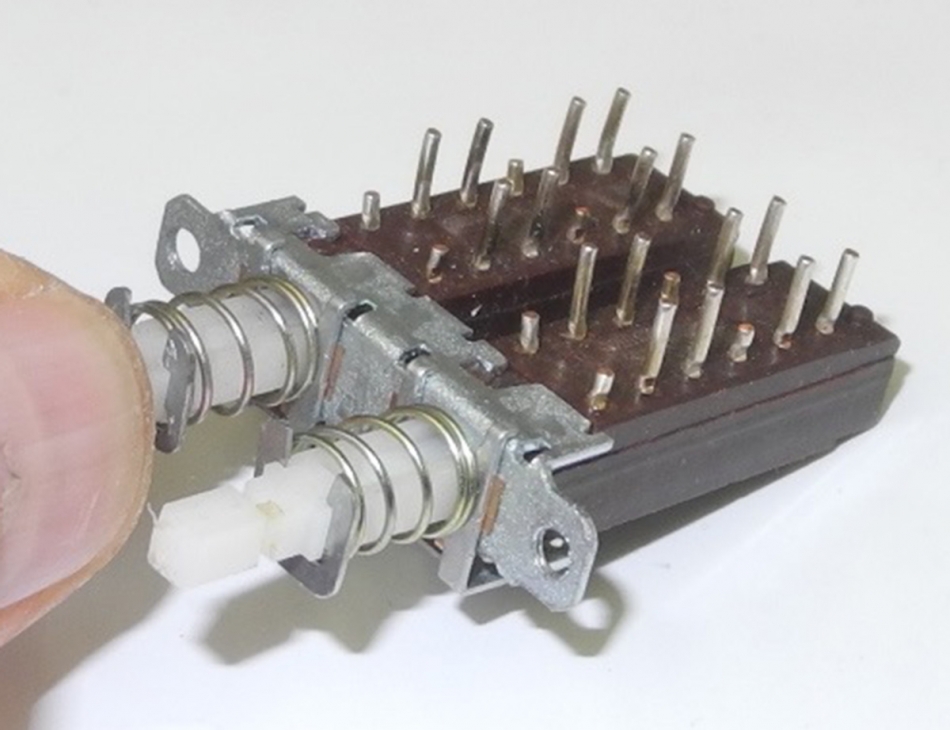

Please note: as can be seen in the photo, the 8 normally closed pins have been cut short. In some applications this may not matter but for PCB applications that require those pins, you will need to add jumpers from the top or bottom of the short pins to the PC board. For applications where these pins are connected to hookup wire or components, no jumpers will be needed.

Very rare, hard to find part.
