New Mounting / Breakout PCB For Cinemag / Jensen 8-Pin Input Transformers. C14
SKU: Single.xfmr.pcb
Stock: 14
Stock: 14
Price:
$18.00

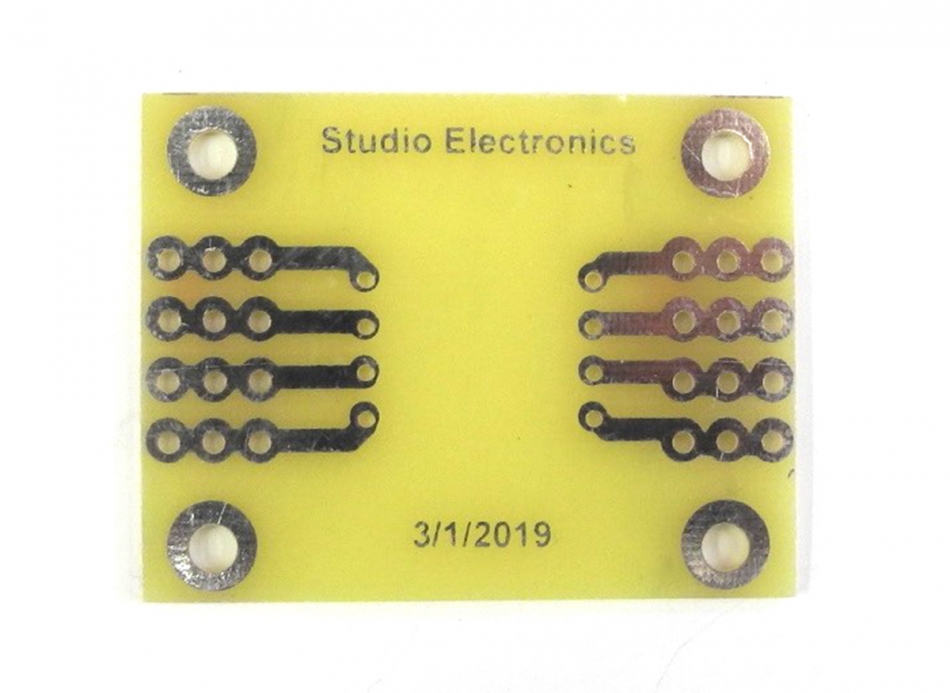

New Mounting / Breakout PC Board For Cinemag / Jensen 8-Pin Input Transformers. This PCB is compatible for all the round Cinemag input transformers that we sell, and will also work with Jensen and other transformers with the same form factor.
Outside dimensions are 2.25 (57mm) x 1 11/16 (44mm). The four mounting holes can be used with #4, #6, 3mm, or 4mm screws and are on 1 3/4 (43mm) x 1 5/16 (33mm) centers. 3 soldering points are provided for each of the 8 pins to allow for easy hookup of multiple hookup wires and small components.
