Stereo Isolation/Balancing Box w/Jensen JE-11-DM 1:1 Nickel Core Output Transformers, Guaranteed. TR

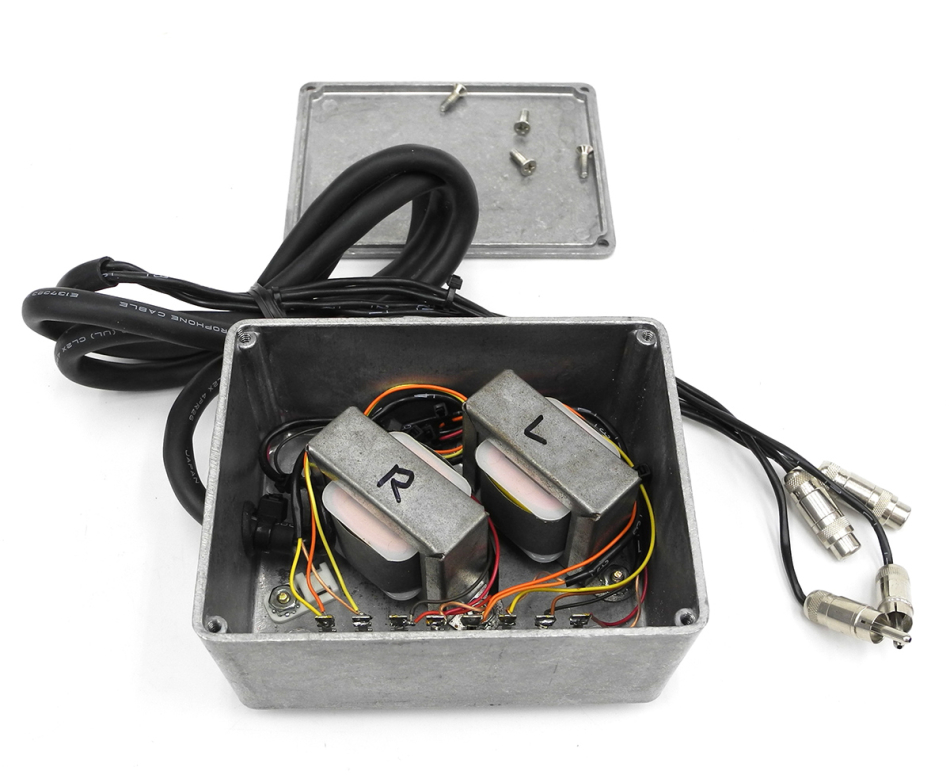

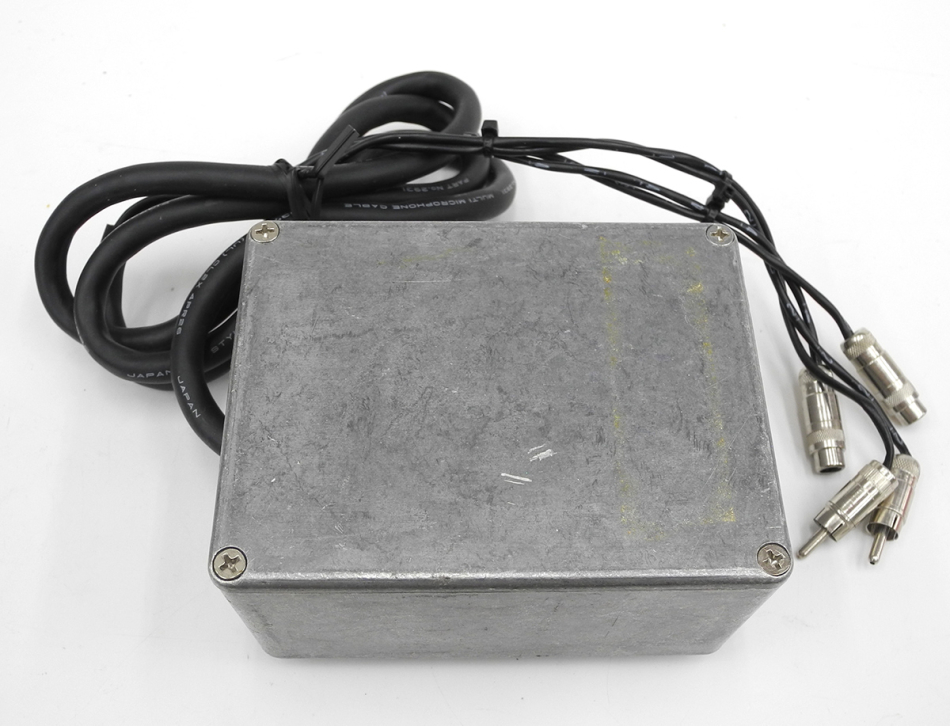

Top quality Stereo Isolation/Balancing Box w/Jensen JE-11-DM 1:1 Nickel Core Output Transformers, Guaranteed. We built this custom unit years ago for a studio install. The transformers are enclosed in a 4.75" x 3.75" x 2" aluminum enclosure and wired with Mogami 4 channel cable that has female RCA jacks for the inputs and male RCA plugs for the outputs. So right now it is set up as an unbalanced to unbalanced ground isolation box but it could be easily rewired for balanced to unbalanced, unbalanced to balanced, or balanced to balanced. If you like we can do this for an additional fee with any kinds of connectors on the ends. The connections are wired using an 8 position terminal strip, so it would be pretty easy to reconfigure the internal wiring.

Of course you could also buy this unit and ermove the transformers for some other purpose. The transformer connections are red = low, brown = high. The secondary connections are yellow = low, orange = high. The mounting holes are on 2 3/8" centers.

A personal note: I had many contacts with Deane Jensen in the 1980’s and the man was truly brilliant, and incredibly helpful to those around him.  The audio industry lost Deane Jensen way too soon.
