Gotham 10070 S/PDIF-Pro Word Clock Coax Cable (328 ft / spool)

SKU: 10070S
Stock: Out of Stock
Colors: Dark Blue
Length Per Spool: 328 ft.

Option: please specify the color:
Qty: - +
   - OR -

Flexible digital audio cable for S/PDIF digital datas. Ideal cable to assemble with phono connectors (cinch). Worryfree

transport of your digital data with the right constructed cable. Combination of braid shield and aluminium foil for

best shielding.

Silver coated conductor and shield wires for best possible performance and to prevent from signal loss caused by

the skin effect.

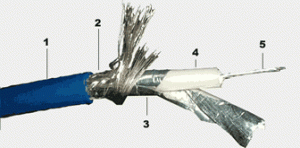

1 Jacket PVC, ø 0.22 in, max., ultrablue

2 Shield No. 1 Braiding with silver coated copper wires (38 AWG)

3 Shield No. 2 Aluminium Polyester foil

4 Insulation Foam skin PE, 7 AWG

5 Conductor Silver coated copper wires, 7x30 AWG (22 AWG)

Conductor resistance < 18.3 Ohm /1000 ft

Attenuation at 1 MHz < 0.3 dB /100 ft

Attenuation at 6 MHz < 0.8 dB /100 ft

Insulation resistance > 3.1 GOhm /1000 ft

Capacitance < 17.1 nF /1000 ft

Charact. impedance at 1-6 MHz 75 Ohms ±2%

Temperature range (flex) - 5° to +50° C

Temperature range (fix) -30° to +70° C
