Gotham 10205 GAC-2 foil CE Foil shielded non corrosive installation cable

Foil shielded halogen free installation cable using 7 x 0.20 mm tinned wires for IDT. Designed for wiring balanced

audio signals in a metal environment.

Aluminium foil is melt with the jacket and will come off automatically. The twisting of the each 7 strands is so tight

that once peeling the insulation of the strands do not come apart and the cable can be installed without additional handling.

The non corrosive material chosen, allows this cable to be used for fixed installations in public buildings and in governmental installations where halogen free products are demanded. The jacket is made of flame retarded polyolefine material.

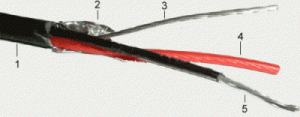

1 Jacket Polyolefin, ø 0.12 in, black

2 Shield Aluminium-Polyester foil

3 Drain wire Stranded tinned copper wires, 7x32 AWG (24 AWG)

4 Insulation PE, ø 0.04 in twisted, black and red conductors

5 Conductor Stranded tinned copper wires, 7x32 AWG (24 AWG)

Conductor resistance < 24.4 Ohm /1000 ft

Shielding resistance < 19.8 Ohm /1000 ft

Capacitance cond /cond < 25 nF /1000 ft

Capacitance cond /shield < 47 nF /1000 ft

Test voltage cond /cond 500 V eff.

Test voltage cond /shield 1500 V eff.

Temperature range (flex) - 5° to +50° C

Temperature range (fix) -30° to +70° C
