Gotham 10620 GAC-2/mini AES Digital installation cable

SKU: 10620 GAC-2 mini AES
Stock: Out of Stock
Length Per Spool: 656 ft.
Colors: Purple

Qty: - +
   - OR -

Ultraflexible installation cable for AES/EBU digital audio data. Highly stabilized 110 Ohm impedance guaranteed with our unique Star-Quad Twinax-construction. Compact size so that cable will easily fit in almost any connector but still perform excellent electrical specifications.

This cable is used as an element in in our GAC-4pair mini AES/EBU, GAC-8pair mini AES/EBU and GAC-12pair mini AES/EBU digital multipair cables.

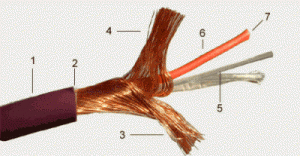

1 Jacket PVC, ø 0.13 in, purple
2 Viscose fiber coat Counter wrapped to the shields
3 Shield No. 1 Bare copper wires (38 AWG), 100% coverage
4 Shield No. 2 Bare copper wires (38 AWG), 100% coverage
5 Cord (2) “PE”, quad twisted with two conductors
6 Insulation Scum PE (foam skin), ø 0.04 in, white and red
7 Conductor Stranded tinned copper wires, 19x38 AWG (24 AWG)

Conductor resistance < 24.4 Ohm /1000 ft
Attenuation at 1 MHz 9.2 dB /1000 ft
Shielding resistance < 10.7 Ohm /1000 ft
Impedance 110 Ohm ±2%
Test voltage cond /cond 500 V eff.
Test voltage cond /shield 2000 V eff.
Capacitance < 14.6 nF /1000 ft
Temperature range (flex) - 5° to +50° C
Temperature range (fix) -30° to +70° C
