Gotham 13001 GAC-2pair round Multipair cable with round construction

SKU: 13001 GAC-2pair round
Stock: Out of Stock
Colors: Gray
Length per Spool: 429 ft.

Qty: - +
   - OR -

Each pair of conductors is protected by our exclusive double Reussen shield. Two layers of copper wires witheach 100% coverage secure minimal crosstalk, maximal RF-rejection and excellent flexibility of the whole construction. With this concept of shielding and protection, the cable is the best possible consens of reliability, flexibility and signal protection. Gotham multipair cables come in various combinations from 2pair up to 34pair, per meter, in cut length or standard spools. All multipair cables are numbered each meter for easy length termination.

Conductor resistance < 33.5 Ohm /1000 ft
Shielding resistance < 6.1 Ohm /1000 ft
Capacitance at 800 Hz, cond /cond < 27.4 nF /1000 ft
Capacitance at 800 Hz, cond /shield< 45.7 nF /1000 ft
Temperature range (flex) - 5° to +50° C
Temperature range (fix) -30° to +70° C

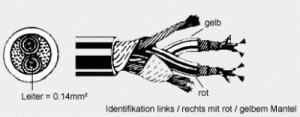

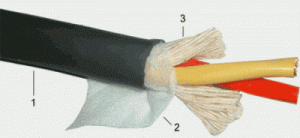

1 Jacket PVC, ø 0.29 in, grey (dark)
2 Viscose fiber coat Counter wrapped to the twisted pair
3 Filling material Fabric file
4 Jacket ø 0.13 in, red or yellow
5 Shield No. 1 Bare copper wires (38 AWG), 100% coverage
6 Shield No. 2 Bare copper wires (38 AWG), 100% coverage
7 Insulation (cond.) PVC, ø 0.04 in, conductors red and white wrapped
6 Conductor Stranded bare copper wires (26 AWG)
