Gotham 14006 GAC-16pair double shielded Multipair cables

Each pair of conductors is protected by our exclusive double Reussen shield. Two layers of copper wires with

each 100% coverage secure minimal crosstalk, maximal RF-rejection and excellent flexibility of the whole
construction. With this concept of shielding and protection, the cable is the best possible consens of reliability,
flexibility and signal protection. Gotham multipair cables come in various combinations from 2pair up to 34pair, per
meter, in cut length or standard spools. All multipair cables are numbered each meter for easy
length termination.

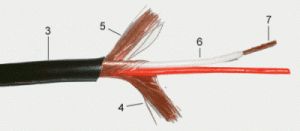

1 Jacket PVC, grey (dark)
2 Viscose fiber coat Counter wrapped
3 Jacket black, ø 0.13 in (numbered)
4 Shield No. 1 Bare copper wires (38 AWG), 100% coverage
5 Shield No. 2 Bare copper wires (38 AWG), 100% coverage
6 Insulation (cond.) PE, ø 0.04 in, conductors red & white wrapped
7 Conductor Stranded bare copper wires, 25x38 AWG (24 AWG)

Conductor resistance < 24.4 Ohm /1000 ft
Shielding resistance < 6.1 Ohm /1000 ft
Capacitance at 800 Hz, cond /cond < 27.4 nF /1000 ft
Capacitance at 800 Hz, cond /shield< 45.7 nF /1000 ft
Temperature range (flex) - 5° to +50° C
Temperature range (fix) -30° to +70° C

Order No.     Type           ø in     Colour  Spool  Weight /Spool
14001     GAC-4pair       0.43     grey     984 ft     110.5 lbs
14003     GAC-8pair       0.55     grey     656 ft     139.5 lbs
14004     GAC-10pair     0.67     grey     656 ft     151.6 lbs
14005     GAC-12pair     0.71     grey     656 ft     181.2 lbs
14006     GAC-16pair     0.79     grey     492 ft     172.4 lbs
14009     GAC-24pair     0.95     grey     328 ft     171.3 lbs
14032     GAC-32pair     1.08     grey     328 ft     211.5 lbs
