Gotham 16312 GAC-12pair foil AES Multipair cable with foil shield

Digital installation cable for AES/EBU digital audio signals. Precise impedance run over the whole cable with quadtwisted strands (4). Large conductor diameter for accurate attenuation without skin-effect disturbances. Aluminium-foil is melt with jacket for easy removal of the shield with one handling. Drain wire for quick ground connection. Solid tinned wire connection to IDT strips (such as Krone).

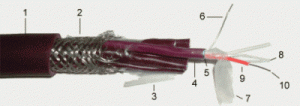

1 Jacket PVC, purple
2 Shield Braiding with tinned copper wires
3 Separation PVC foil
4 Jacket PVC, ø 0.18 in, purple
5 Shield Aluminium-foil
6 Drain wire Solit tinned copper wire, ø 0.016 in
7 Stabilisation PE foil
8 Cord (2) PVC-strand, ø 0.05 in, quad twisted with 2 conductors
9 Insulation Foam-skin PE, ø 0.05 in, red and white
10 Conductor Solid tinned copper wire, ø 0.019 in (25 AWG)

Conductor resistance < 27.4 Ohm /1000 ft
Attenuation at 1 MHz < 9.2 dB /1000 ft
Attenuation at 6 MHz < 19.6 dB /1000 ft
Insulation resistance > 3.1 GOhm /1000 ft
Capacitance < 12.2 nF /1000 ft
Characteristic impedance 110 Ohm ±2%
Temperature range (flex) - 5° to +50° C
Temperature range (fix) -30° to +70° C
