Gotham 16508 GAC-8pair mini AES Multipair cable for digital transmission

Ultraflexible multipair cables for AES/EBU digital audio data. Highly stabilized 110 Ohm impedance guaranteed with our unique Star-Quad

Twinax-construction. Compact size so that the cable will easily fit in small connectors (GAC-8pair AES/EBU will fit in 25-pin D-SUB connectors) but still perform excellent electrical specifications. Using the GAC-2/mini AES single pair cable as the element for our range of multipair digital cables (except for the GAC-12pair foil AES), we offer now 4-, 8-, and 12- pair flexible cables. (For technical data please refer to GAC-2/mini AES). Numerical identification on each pair. Sold also per meter.

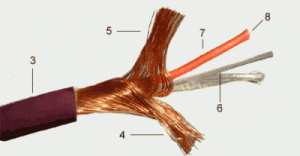

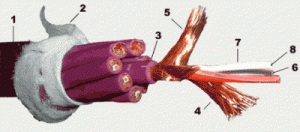

1 Jacket PVC, purple
2 Shield No. 1 Counter wrapped
3 Jacket PVC, ø 0.14 in
4 Shield No. 1 Bare copper wire (38 AWG), 100% coverage
5 Shield No. 2 Bare copper wire (38 AWG), 100% coverage
6 Cord (2) “PP”, quad twisted with 2 conductors
7 Insulation Scum-PP, ø 0.04 in, white and red
8 Conductor Stranded tinned copper wires, 19x38 AWG (24 AWG)

Conductor resistance < 24.4 Ohm /1000 ft
Shield resistance < 6.1 Ohm /1000 ft
Capacitance < 12.2 nF /1000 ft
Impedance 110 Ohm ±2%
Attenuation at 1 MHz < 10.7 dB /1000 ft
Attenuation at 6 MHz < 22.1 dB /1000 ft <
Temperature range (flex) - 5° to +50° C
Temperature range (fix) -30° to +70° C
